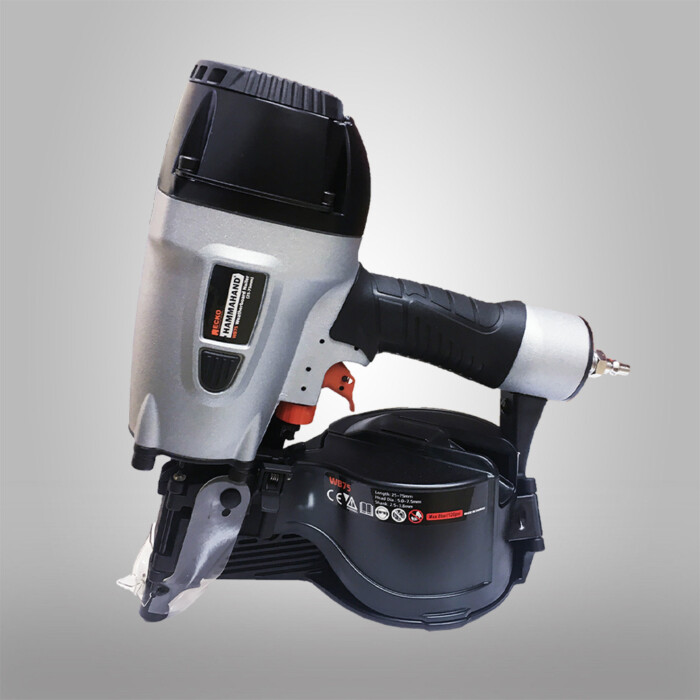

HAMMAHAND® Weatherboard Nailer WB75
Product Code: WB75
- Covers a wide range of manual applications
- Accepts both wire welded and wirelesscoil nails without any adjustment
- Lightweight, magnesium body
- Tough nail magazine cover
- Blow mould carry case
Fasteners
Jolt Head, Round 15° Angle Wire Coil & WirelessCoil Nails
| Product Code | Head Type | Size | Finish | Shank | Collation | Carton QTY | Application |
| JOG-50V8R | Jolt Head | 50 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | Rails Capping |
| JOG-60V8R | Jolt Head | 60 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | Window & Door frames |
| JOG-65V8R | Jolt Head | 65 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | |
| JOG-75V8R | Jolt Head | 75 x 3.15mm | Galvanised | Ring | Wire Coil | 3000 | Weatherboard |
| JOSS-50V8R | Jolt Head | 50 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | Rails Capping |
| JOSS-60V8R | Jolt Head | 60 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | Window & Door frames |
| JOSS-65V8R | Jolt Head | 65 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | |
| JOSS-75V8R | Jolt Head | 75 x 3.15mm | 304 S/Steel | Ring | Wire Coil | 1000 | Weatherboard |
| HHG-27V5R | Round Head | 27 x 2.50mm | Galvanised | Ring | WirelessCoil | 3000 | Tile & Slate underlay |
| HHG-40V8R | Round Head | 40 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | RAB Board Ply bracing Soffit |
| HHG-50V8R | Round Head | 50 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | RAB Board Ply bracing Fencing |
| HHG-60V8R | Round Head | 60 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | |
| HHG-65V8R | Round Head | 65 x 2.80mm | Galvanised | Ring | WirelessCoil | 3000 | Cavity batten Fencing |
| HHG-75V8R | Round Head | 75 x 3.15mm | Galvanised | Ring | Wire Coil | 3000 | Weatherboard |
| HHSS-40V8R | Round Head | 40 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | RAB Board Ply bracing Soffit |
| HHSS-50V8R | Round Head | 50 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | RAB Board Ply bracing Fencing |
| HHSS-60V8R | Round Head | 60 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | Cavity batten Fencing |
| HHSS-65V8R | Round Head | 65 x 2.80mm | 304 S/Steel | Ring | WirelessCoil | 1000 | Cavity batten Fencing |
| HHSS-75V8R | Round Head | 75 x 3.15mm | 304 S/Steel | Ring | Wire Coil | 1000 | Weatherboard |
| SKL-8G50 | - | 8g x 50mm | Zinc | NailScrew | WirelessCoil | 3000 | |
| SKL-8G60 | - | 8g x 60mm | Zinc | NailScrew | WirelessCoil | 3000 | |
| SKL-8G65 | - | 8g x 65mm | Zinc | NailScrew | WirelessCoil | 3000 |
Specifications
| Dimension | 313mm x 132mm x 316mm (L x W x H) |
| Weight | 3.1kg |
| Operating Pressure | 70 - 120psi |
| Magazine capacity | 225 - 300 nails |
| Fastener diameter | 2.50 - 3.33mm |
| Fastener length | 25 - 75mm |
| Applications | Timber weatherboard Tile and slate underlay Soffit lining Ply bracing Cavity battens Fencing Pine decking Metal tile roofing |
Catalogue
Video
New Version of HAMMAHAND® Weatherboard Nailer WB75
Tool Parts
FAQs
What else can the ECKO HAMMAHAND® Weatherboard Nailer WB75 be used for?
Tile & Slate Underlay
RAB
PLY
Soffits
Cavity Batten
Fencing
Decking
Concealed Fixing Weatherboard
Face Nailing Weatherboard
Plus much more
Can I use other coil nails in my ECKO HAMMAHAND® WB75 Weatherboard Nailer?
In some instances its possible but this can cause jamming issues & may void the ECKO 2 Year Warranty.
Can I use Tile & Slate underlay nails in my ECKO Weatherboard Nailer?
Yes, ECKO provided the model is the HAMMAHAND® Weatherboard Nailer FC75 or HAMMAHAND® Weatherboard Nailer WB75
