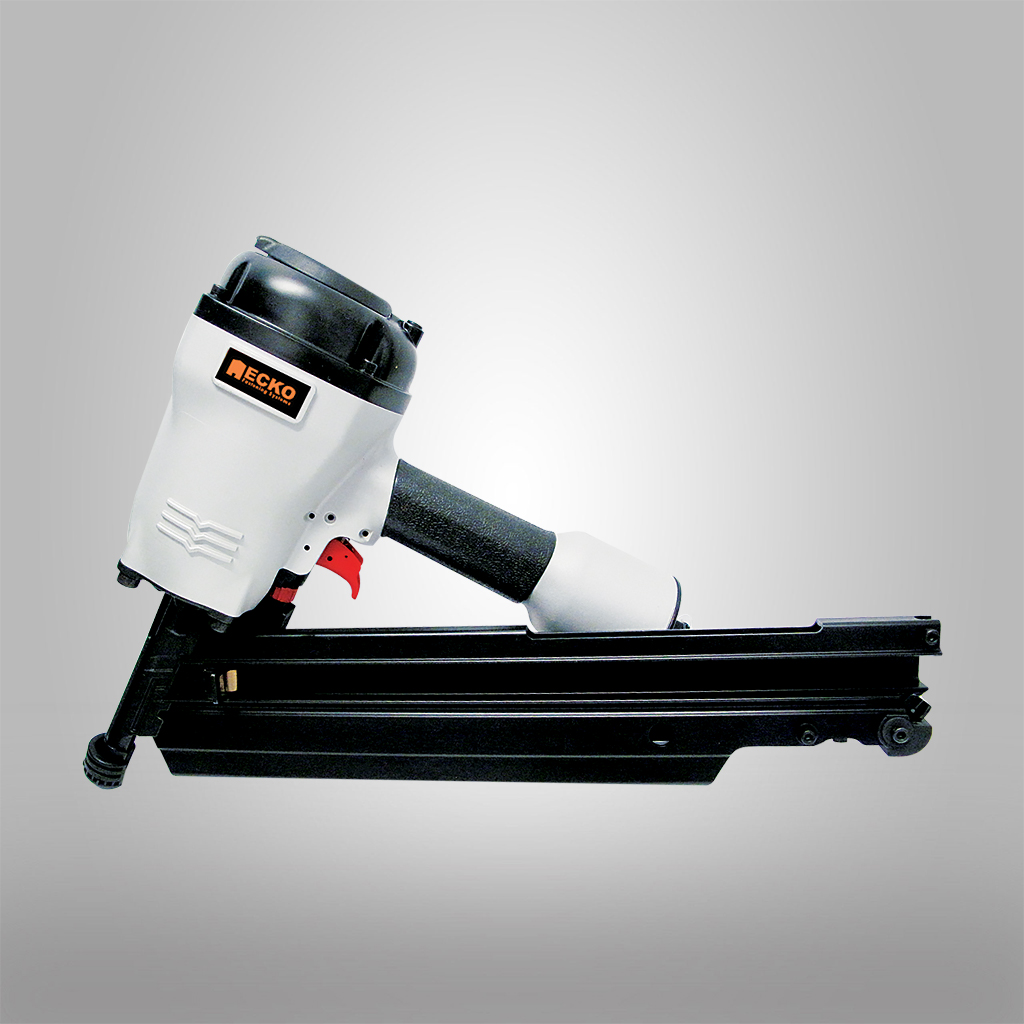

Frametec90® Construction Air Framer ND90S
Product Code: ND90S
- Accept both D head or Round head paper collated 34° framing nails
- Light weight, magnesium body
- Anti-dry firing mechanism
- Easy jam clearing
- Aggressive nose design for skew nailing
- No mark pad
Fasteners
34° Angle D Head, Round Head Paper Collated
| Gasless Pack | |||||
| Product Code | Head Type | Size | Finish | Shank | Carton QTY |
| ND-3465 | D Head | 65 x 2.87mm | Bright | Smooth | 3000 |
| ND-3475 | D Head | 75 x 3.15mm | Bright | Smooth | 3000 |
| ND-3488L | D Head | 90 x 3.15mm | Bright | Smooth | 3000 |
| ND-3490SP | D Head | 90 x 3.15mm | Bright | Smooth (Shear Point) | 3000 |
| ND-3490S | D Head | 90 x 3.15mm | Bright | Smooth | 3000 |
| NDHP-3450R | D Head | 50 x 2.87mm | Galvanised | Ring | 3000 |
| NDHP-3465R | D Head | 65 x 2.87mm | Galvanised | Ring | 3000 |
| NDHP-3475R | D Head | 75 x 3.15mm | Galvanised | Ring | 3000 |
| NDHP-3490 | D Head | 90 x 3.15mm | Galvanised | Smooth | 3000 |
| Handy Pack | |||||
| NDSS-3450R | D Head | 50 x 2.87mm | 304 S/Steel | Ring | 1000 |
| NDSS-3465R | D Head | 65 x 2.87mm | 304 S/Steel | Ring | 1000 |
| NDSS-3475R | D Head | 75 x 3.15mm | 304 S/Steel | Ring | 1000 |
| NDSS-3490R | D Head | 90 x 3.15mm | 304 S/Steel | Ring | 1000 |
| ND-3465H | D Head | 65 x 2.87mm | Bright | Smooth | 1000 |
| ND-3475H | D Head | 75 x 3.15mm | Bright | Smooth | 1000 |
| ND-3490SH | D Head | 90 x 3.15mm | Bright | Smooth | 1000 |
| NDHP-3450RH | D Head | 50 x 2.87mm | Galvanised | Ring | 1000 |
| NDHP-3465RH | D Head | 65 x 2.87mm | Galvanised | Ring | 1000 |
| NDHP-3475RH | D Head | 75 x 3.15mm | Galvanised | Ring | 1000 |
| NDHP-3490H | D Head | 90 x 3.15mm | Galvanised | Smooth | 1000 |
Specifications
| Dimension | 448mm x 151mm x 336mm (L x W x H) |
| Driving Power | 1099.32 lbs |
| Weight | 3.56kg |
| Operating Pressure | 70 - 120psi |
| Magazine capacity | 90 nails |
| Fastener diameter | 2.87 - 3.33mm |
| Fastener length | 50 - 90mm |
| Applications | Framing Trusses Subfloor Fencing |
